320mm /850mm /950mm/1000mm/1200mm

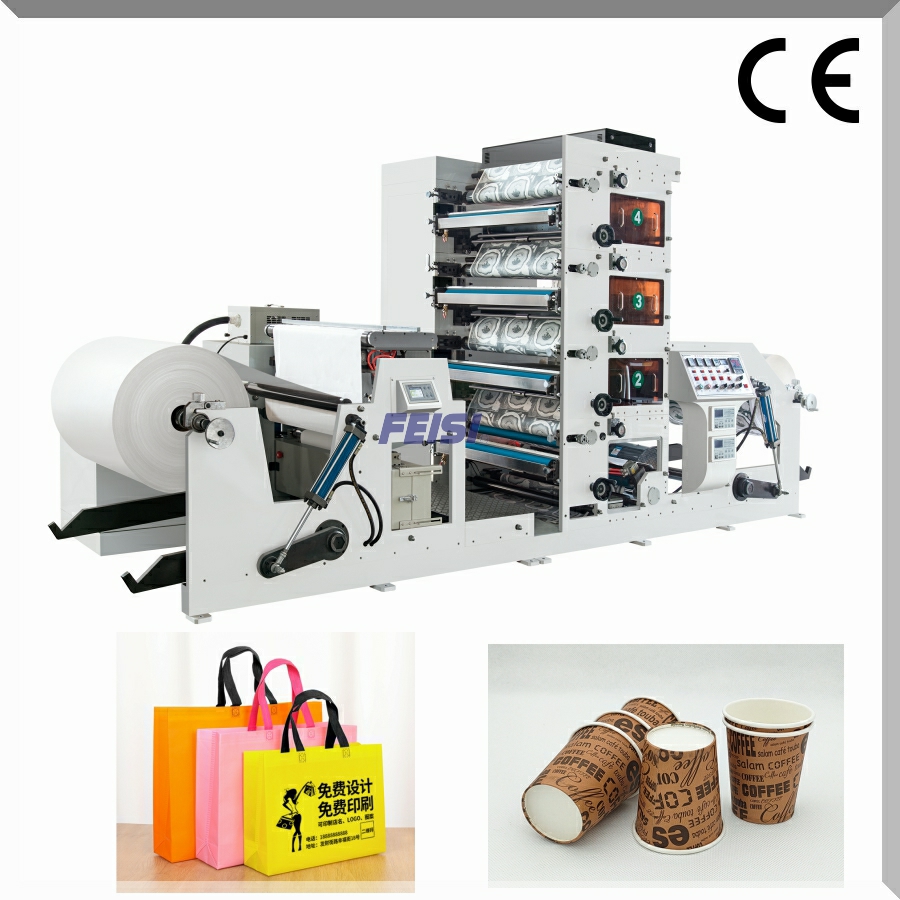

Automatic Flexo Printing Machine (UV can be ordered)

Main Features:

1. The machine is compact in structure, easy to operate, soft to start, and accurate to color registration.
2. The unwinding unit adopts magnetic powder braking (automatic constant tension control) and hydraulic lifting device.
3. The ceramic anilox roller is used to transfer the ink, the ink color is uniform, and the printing roller is automatically separated from the printing roller when it is stopped, and it is rotated vulgarly to prevent the ink from drying out.
4. Each group of individual 360° continuously adjustable vertical alignment devices
5. Each group of colors is equipped with an independent infrared drying system, which cooperates with high-speed operation and automatically opens the circuit when it stops.
6. The printing roller base and the receiving frame are equipped with jog and emergency stop devices, which are easy to operate, safe and reliable!
7. The counter can set the number of prints according to the requirements, and it will automatically stop when the number is reached, and automatically stop when the material is cut off.
8. The rewinding unit adopts frequency conversion motor (automatic constant tension control) and hydraulic lifting device.
9. The machine adopts imported variable frequency stepless speed regulation to adapt to different printing speeds.
10. This machine has complete functions, from feeding, deviation correction, printing, drying, and receiving materials at one time.
11. Optional: corona, glazing, UV drying, lamination, adhesive coating and other functions.

Main Parameters:

Item	Main Specifications
Machine Model	FS-FP320/850/950/1000/1200
Printing Speed	50-60min/min
Finished Printing Roll Max Size	Width x Diameter=320-1200mmxØ1300mm
Material Roll Max Size	Width x Diameter =320-1200mmxØ1300mm
Printing Full Page Length	175-380mm
Overprint Accuracy	±0.10mm
Raw Materials	Kraft Paper Paper Coating with PE/PLA Plastic Film Nonwoven Fabric Tissue Paper etc.
Thickness/GSM of Paper	Roll Types GSM of Material: 50-380g/m²
Drying Unit	By Infrared Lamp
Control System	Standard: China Top Brand: Innovance Mitsubishi Japan can be ordered!
Total Power	36KW depends on different model
Voltage	380V±10%,50Hz,3Phase Other voltage can be ordered!
Compressor Air Supply	0.6-0.8MPa、0.4m³/min Prepared by Customer
Machine Size	4800 x 2050x 2100mm Wooden Box Size: 2800×2250×2250mm 2000×1900×1400mm, Total CBM 9.5
Machine Weight	3-6.5 TONS
